Shenzhen Mejor Industrial Limited
深圳米喆实业有限公司

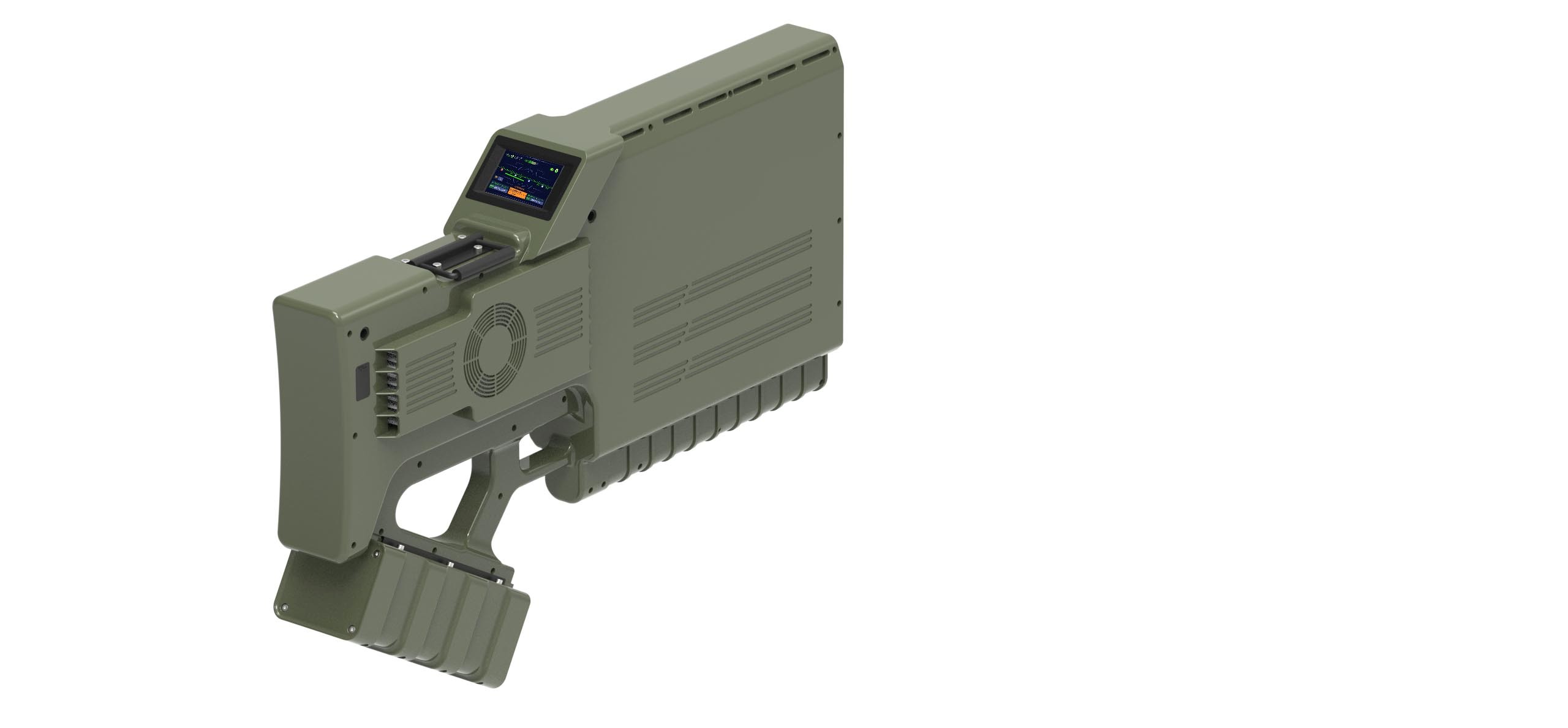

UAV Detection,Jamming,Navigation deception gun
u Fast Detection: Second-level detection, sound and light alarm immediately after discovery
u Accurate Identification: Accurately identify different drones of the same brand, model, and frequency band
u No Fails Alarm: Accurately filter other radio signals and accurately early warning；
u Direction Finding: After the drone is detected, the direction of the drone can be accurately determined, The direction with the highest sound is the direction of the drone
u Long Detection Range: Single point detection distance can reach 3km+
u Large Model Library: Cover more than 98% of drone models on the market
u Fast Detection: Second-level detection, sound and light alarm immediately after discovery
u Accurate Identification: Accurately identify different drones of the same brand, model, and frequency band
u No Fails Alarm: Accurately filter other radio signals and accurately early warning；
u Direction Finding: After the drone is detected, the direction of the drone can be accurately determined, The direction with the highest sound is the direction of the drone
u Long Detection Range: Single point detection distance can reach 3km+
u Large Model Library: Cover more than 98% of drone models on the market
Function | parameter | Characteristic Value |
Detection /Direction Finding | Detection range | 360° |
Frequency range | 400Mhz-6Ghz | |
Detection distance | ≥ 3km | |
Sensitivity | -105dbm | |
Detection response time | ≤3s | |
Direction Finding frequency range | 2.4Ghz,5.8Ghz | |
Direction Finding distance | ≥ 1km | |
Direction Finding Accuracy | ≤10° | |
Positioning accuracy | ≤5m | |
Alarm method | LCD display,voice,vibration | |
Jamming | Frequency | 433Mhz,800-900Mhz,1.2Ghz,1.5Ghz,2.4Ghz, 5.2Ghz,5.8Ghz |
Distance | 3km | |
Jamming range | Horizontal:±15°,vertical:±10° | |
Navigation deception | GNSS signal deception | GPS/BD/GLONASS |
Distance | 2km | |
Mechanical specification | Display module | 3.5inch,resolution:1280*720 ,capacitive touch
|
Working time with battery | Working time:40mins@all range jamming mode,1hour@4 frequency(900/2.4/5.2/5.8) jamming mode. Detection time≥7hours(single battery) | |
Work temperature | -25℃～+55℃ | |
Relative humidity | ≤95% | |
Dimension | 775.6*524*120mm | |
Weight | ≤9.5kg (Battery included) | |
Heat dissipation mode | Fan cooling | |
Antennas | Inside the case | |
Protection class | IP65 |
Protection of prohibited areas, such as: prison, military management area, national strategic resources projects, nuclear industry facilities, airports, political regions and etc.
To prevent the leakage of information on the scene, such as: major criminal cases on-site, urban management law enforcement scene, an important security venue, political followers’ protection, large-scale performance rehearsal, archaeological excavation site, large groups event site
To combat the use of unmanned aerial vehicles as a carrier of illegal activities, such as: transport, drug trafficking, smuggling, illegal goods or information transmission
